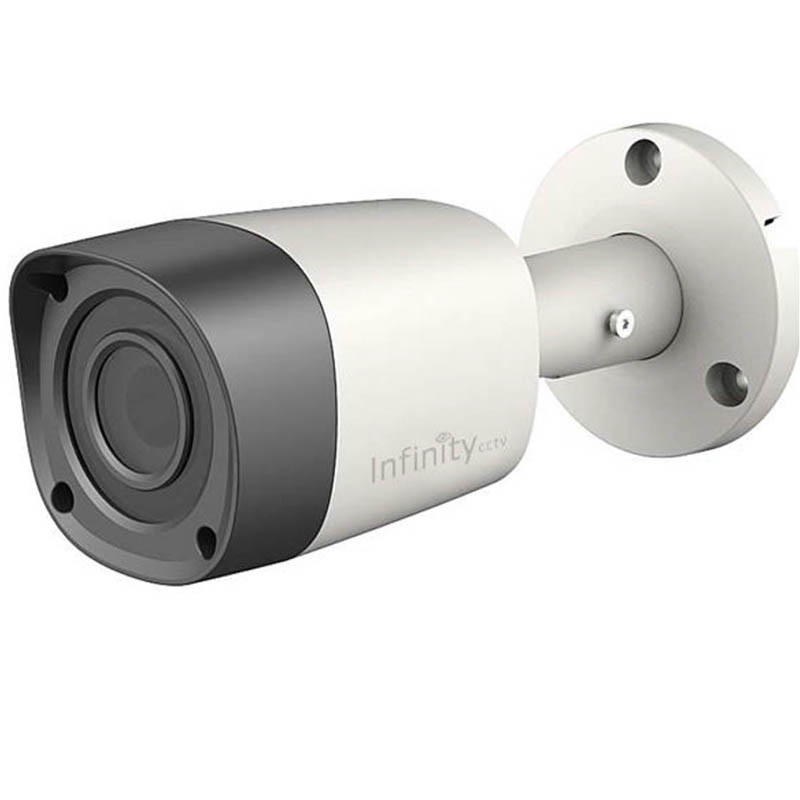

1/2.9" 1Megapixel CMOS
25/30fps@720P
High speed, long distance real-time transmission
Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
6mm fixed lens (3.6mm optional)
Max. IR LEDs length 20m, Smart IR
IP67, DC12V
Description
| Model | BS-22 | |
| Camera | Image Sensor | 1/2.9" 1Megapixel CMOS |
| Effective Pixels | 1280(H)×720(V) | |
| Electronic Shutter | 1/50s~1/100,000s | |
| Video Frame Rate | 25/30fps@720P | |
| Synchronization | Internal | |
| Mini. Illumination | 0.05Lux/F2.0, 30IRE, 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output | |
| Camera Features | Max. IR LEDs Length | 20m, Smart IR |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| Lens | Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Angle of View | H: 72.3° (91.6°/46°) | |
| Mount Type | Board-in | |
| General | Power Supply | 12V DC ±25% |
| Operating Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|
| Power Consumption | Max 2.8W (12V DC, IR on) | |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 800m via 75-3 coaxial cable | |
| Ingress Protection | IP67 | |
| Dimensions |
154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75") |
|
| Weight | 0.20kg (0.44lb) | |
| Material | Plastic | |
| Model | BS-22 | |
| Camera | Image Sensor | 1/2.9" 1Megapixel CMOS |
| Effective Pixels | 1280(H)×720(V) | |
| Electronic Shutter | 1/50s~1/100,000s | |
| Video Frame Rate | 25/30fps@720P | |
| Synchronization | Internal | |
| Mini. Illumination | 0.05Lux/F2.0, 30IRE, 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output | |
| Camera Features | Max. IR LEDs Length | 20m, Smart IR |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| Lens | Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Angle of View | H: 72.3° (91.6°/46°) | |
| Mount Type | Board-in | |
| General | Power Supply | 12V DC ±25% |
| Operating Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|
| Power Consumption | Max 2.8W (12V DC, IR on) | |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 800m via 75-3 coaxial cable | |
| Ingress Protection | IP67 | |
| Dimensions |
154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75") |
|
| Weight | 0.20kg (0.44lb) | |
| Material | Plastic | |
