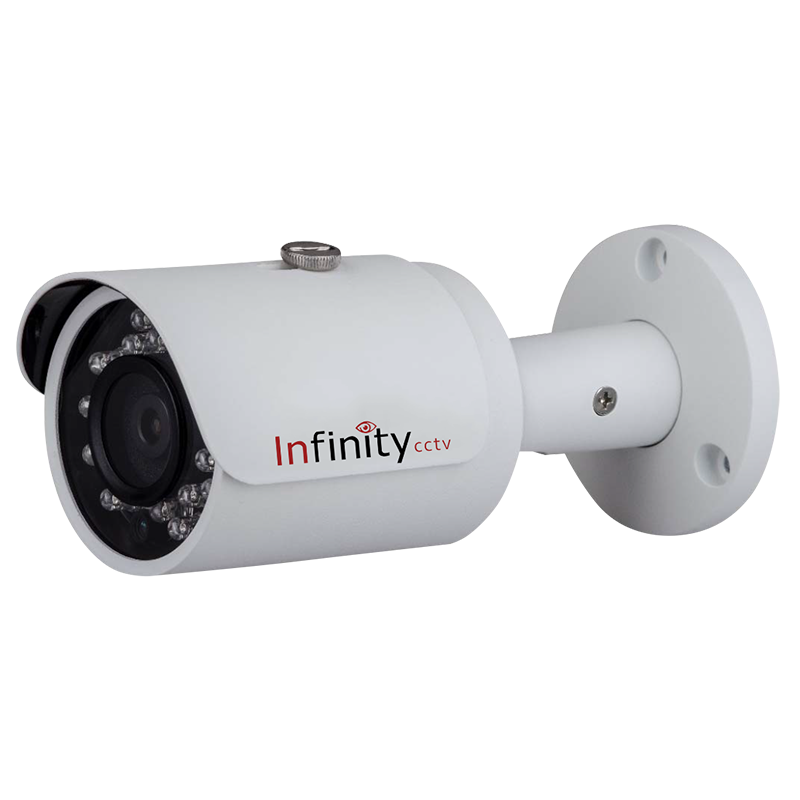

1/3" 3Megapixel progressive scan CMOS
H.264&MJPEG dual-stream encoding
25/30fps@1080P(1920× 1080)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8 mm fixed lens (3.6 mm 6mm optional)
Max. IR LEDs Length 30m
IP67, PoE
Description
| Model | BIS-33 | |
| Camera | Image Sensor | 1/3” 3Megapixel progressive scan CMOS |
| Effective Pixels | 2304H)x1536(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1s~1/100000s | |
| Min. Illumination | 0. 025Lux/F2.1(Color), 0Lux/F2.1(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | Max. IR LEDs Length | 30m |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | Focal Length | 2.8 mm (3.6 mm optional) |
| Max Aperture | F2.0/F2.0 | |
| Focus Control | H: 93°(63°) | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | Compression | H.264/ H.264H/ H.264B/ MJPEG |
| Resolution | 3M(2048×1536)(2304×1296) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) | |
| Frame Rate | 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)s) / D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H264:24K ~ 8192Kbps | |
| Corridor Mode | Support | |
| Audio | Compression | N/A |
| Interface | N/A | |
| Network | Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
|
| Compatibility | ONVIF, PSIA, CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | Memory Slot | N/A |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | <5.5W(IR on) | |
| Working Environment | -30°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | N/A | |
| Dimensions | Φ70mm× 165mm | |
| Weight | 0.38Kg | |
