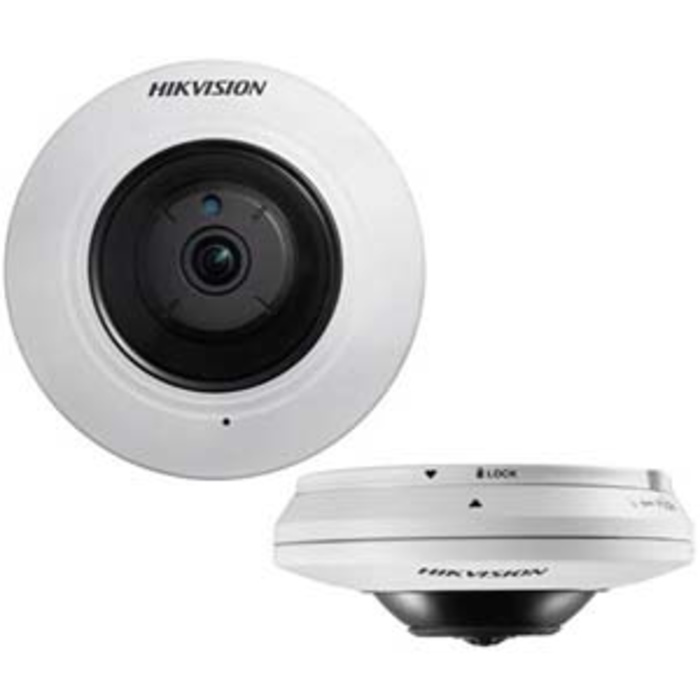

Hikvision IP Camera DS-2CD2942F-IS

4 MP Compact Fisheye Network Camera

Key Features :
- 1/3 Progressive Scan CMOS
- Up to 4 megapixel resolution
- Fisheye & PTZ view
- 3D DNR
- -I: IR range approx. 8 meters
- -S: audio & alarm I/O
- Support 128G on-board storage
- 12 VDC 10% / PoE

Specification :
Image Sensor 1/3 Progressive Scan CMOS
Min. Illumination Color: 0.01lux @(F1.2, AGC ON), 0.018lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s ~ 1/100,000 s
Slow Shutter Support
Lens 1.6mm, F1.6 Angle of view: 186(horizontal), 106(vertical)
Lens Mount M12
Day & Night Electronic (-I: ICR)
Video Compression H.264/MJPEG
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32 Kbps 8 Mbps
Audio Compression
(-S)
G.711/G.722.1/G.726/MP2L2
Audio Bit Rate (-S) 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 2560 1440
Frame Rate
50Hz: 12.5fps(2560 1440), 25fps(1920 1080, 1280 720)
60Hz: 15fps(2560 1440), 30fps(1920 1080, 1280 720)
Enhancement
BLC/3D DNR/ROI/Defog
Image Setting Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Operating
Conditions
-10 C 40 C (14 F 104 F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC 10% / PoE (802.3af)
Power
Consumption
Max. 5.55 W
IR Distance -I: 8m
Dimensions 119.9 x 41.2(4.72 1.62)
Weight 900g
