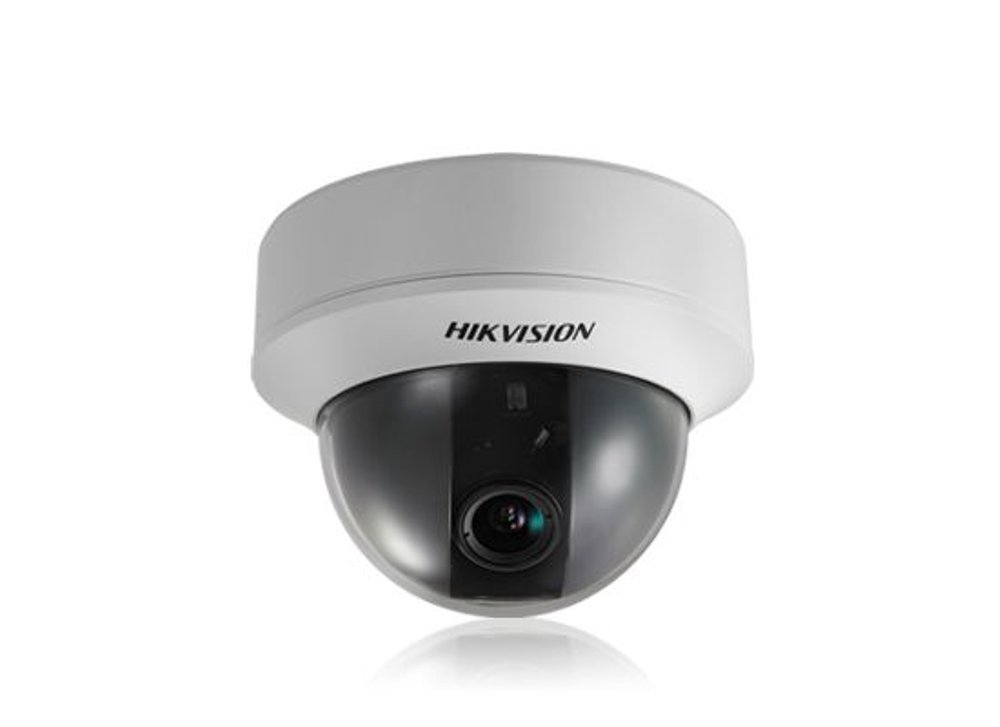

hikvision DS-2CC51A7P-VPIRH

Image Sensor 1/3 SONY CCD
Signal System PAL/NTSC
Effective Pixels PAL: 976 (H) 582 (V), NTSC: 976 (H) 494 (V)
Min. Illumination
0.001 Lux @ (F1.2, AGC ON),
0 Lux with IR
0.0014 Lux @ (F1.4, AGC
ON), 0 Lux with IR
0.001 Lux @ (F1.2, AGC ON),
0.0001 Lux @ (F1.2, AGC ON,
sensitivity 256), 0 Lux with
IR
0.0014 Lux @ (F1.4, AGC
ON), 0.00014 Lux @ (F1.4,
AGC ON, sensitivity 256), 0
Lux with IR
0.001 Lux @ (F1.2, AGC ON),
0.0001 Lux @ (F1.2, AGC ON,
sensitivity 256), 0 Lux with
IR
0.0014 Lux @ (F1.4, AGC
ON), 0.00014 Lux @ (F1.4,
AGC ON, sensitivity 256), 0
Lux with IR
Shutter speed PAL: 1/50 s to 1/100,000 s, NTSC: 1/60 s to 1/100,000 s
Lens 2.8 - 12 mm @ F1.4
Angle of view: 80 - 27.2
Lens Mount 14
Auto Iris DC drive
Angle Adjustment Pan: 0 - 355, Tilt: 0 - 80, Rotation: 90
Day & Night IR cut filter with auto switch
Horizontal Resolution 700 TVL
Synchronization Internal/Power synchronization
Video Output 1Vp-p composite output (75 /BNC);
Test monitor out [1Vp-p composite output (75 /BNC), device line]
S/N Ratio More than 62 dB
Menu
Camera ID On/Off (52 letters, position
adjustable)
On/Off (16 letters, position
adjustable)
On/Off (16 letters, position
adjustable)
Auto Gain Low/Middle/High/Off Low/Middle/High/Off
D/N Mode Auto /Day/Night/EXT1/EXT2 Auto/Day/Night Auto/Day/Night
White Balance
ATW/PUSH/USER1/USER2/
ANTI CR/MANUAL/PUSH
LOCK
Auto trace WB1/Auto trace
WB2/Manual/Auto Control
Auto trace WB1/Auto trace
WB2/Manual/Auto Control
Privacy Masking On/Off, maximum 8 zones On/Off, maximum 12 zones On/Off, maximum 12 zones
Motion Detection On/Off
BLC Area/Intensity/Off
WDR Value/Contrast/Return
Anti-flicker On/Off
Language
Chinese/ English/ Japanese/
German/ French/ Russian/
Portuguese/ Spanish
English/Chinese English/Chinese
Video
SMART IR, ATR, HLC, DNR,
Sharpness, Brightness,
Contrast, Hue, Gain, Mirror,
Defect Pixel Correction
SMART IR, Digital Wide
Dynamic Range, Eclipse,
Digital Noise Reduction,
Sharpness, Brightness,
Saturation, Resolution,
Electronic image stabilization,
Digital Zoom, Mirror, Defect
Pixel Correction
SMART IR, Eclipse, Digital
Noise Reduction, Sharpness,
Brightness, Saturation,
Resolution, Electronic image
stabilization, Digital Zoom,
Mirror, Defect Pixel Correction
Scene
Indoor Standard , Indoor
Backlight , Outdoor, Low
illumination , IR Standard ,
Customize
Indoor Standard , Indoor
Backlight , Outdoor, Low
illumination , Customize, IR
Standard
General
Working Temperature/Humidity
-10 C - 60 C (14 F - 140 F)
Humidity 90% or less (non-condensing)
-H: -40 C - 60 C (-40 F - 140 F) with heater and fan on
Power Supply 24 V AC 10%, 12 V DC 10%
-H: 24 V AC 10%
Ingress Protection IP66
Heater -H: support
IR Range -IR: approx 20 to 30 meters
Power Consumption Max. 13 W
-H: Max. 25W
Impact Protection IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10
