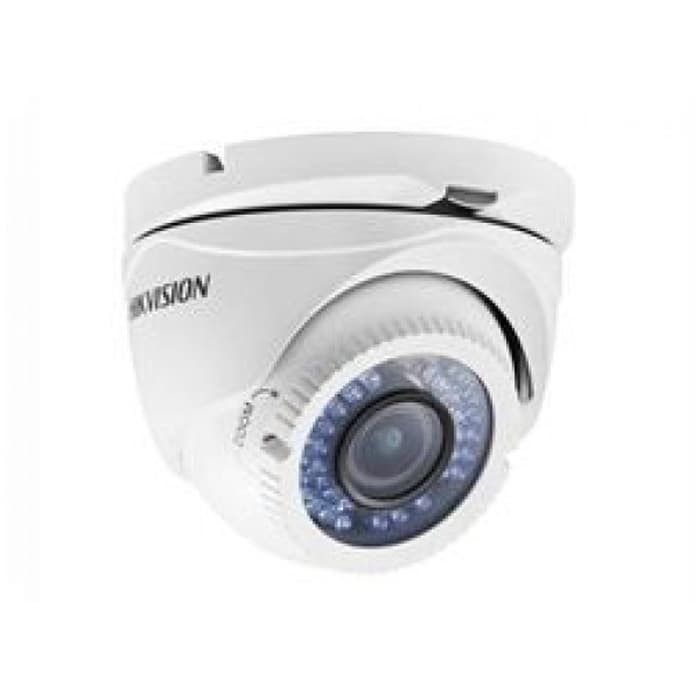

Hikvision Analog Camera DS-2CE55A2P-VFIR3

Key Features:
1/3" DIS
True Day/Night
700 TVL horizontal resolution
2.8 ~ 12mm vari-focal lens
40m IR distance
Wide operating temperature range

Specifications:
Camera
Image Sensor
1/3" DIS
Signal System
PAL/NTSC
Effective Pixels
976(H)496(V )
Min. Illumination
0.1 Lux @ (F1.2,AGC ON),0 Lux with IR
0.14 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter speed
PAL: 1/50 s to 1/100,000 s
NTSC: 1/60 s to 1/100,000 s
Lens
2.8-12mm @ F1.4
Angle of view: 80 - 27.2
Lens Mount
14
Angle Adjustment
Pan: 0 - 360, Tilt: 0 - 75, Rotation: 0 - 360
Day & Night
IR cut filter with auto switch
Horizontal Resolution
700 TVL
Synchronization Internal synchronization
Video Output 1Vp-p composite output (75 /BNC)
S/N Ratio
More than 62 dB
BLC On
General
Working Temperature/
Humidity
-40 C - 60 C (-40 F - 140 F)
Humidity 90% or less (non-condensing)
Power Supply
12 V DC 10%
Power Consumption
Max. 4 W
(Max. 5 W with IR cut flter on)
Ingress Protection
IP66
IR Range
Approx. 30 to 40 meters
Dimensions 134.2123.988.1mm(5.284.883.47)
Weight 600g
