2Megapixel high-performance CMOS
Turbo HD output, up to 1080P resolution
True Day/Night
DNR, Smart IR
Up to 20m IR distance
IP66 weatherproof
Description
| Model | TC-53 | |

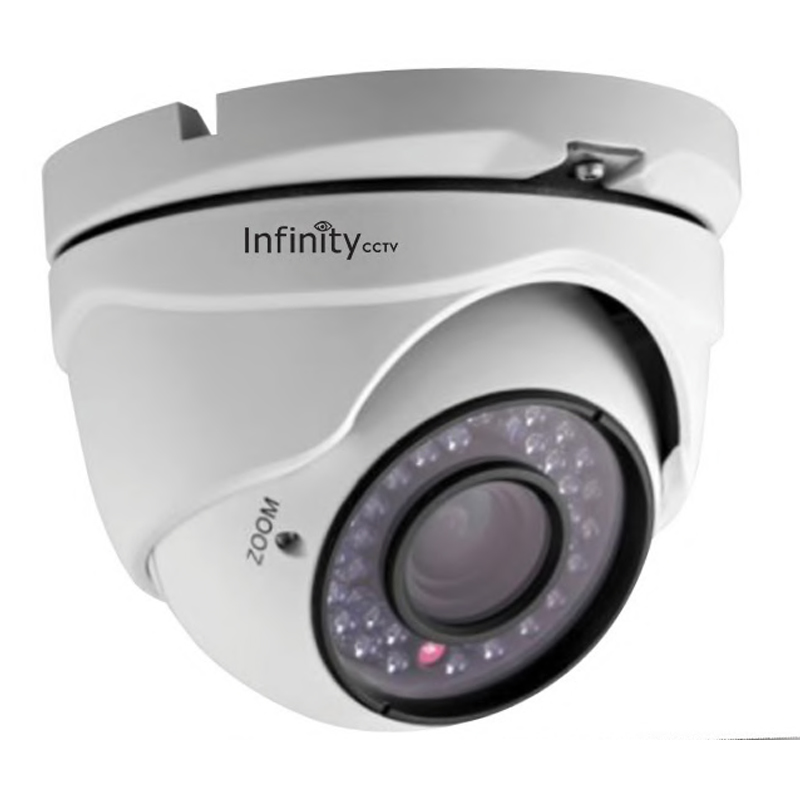

| 1080P IR Turbo HD Turret Camera | ||
| Camera | Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 1920(H)*1080(V) | |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time | 1/25(1/30) s to 1/50,000 s | |
| Lens | 3.6mm (2.8mm, 6mm optional) | |
| Angle of View: 115.6°(2.8mm), 90°(3.6mm), 5.4°(6mm) | ||
| Lens Mount | M12 | |
| Angle Adjustment | Pan: 0 - 360°, Tilt: 0-75°, Weight 240g, Max 3W | |
| Day & Night | ICR | |
| Synchronization | Internal synchronization | |
| Video Frame Rate | 1080P@25fps/1080P@30fps | |
| HD Video Output | 1 Turbo HD output | |
| S/N Ratio | More than 52dB | |
| General | Working Temperature/Humidity |
"-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12V DC | |
| Power Consumption | Max. 3.5W | |
| Weather Proof Ratings | IP66 | |
| IR Range | Up to 20m | |
| Dimension | 89.6 × 59.1 mm (3.53” × 2.33”) | |
| Weight | 307 g | |
| Ukuran (L X W X H cm) | 0x0x0 |
| Berat (kg) | 0.00 |
