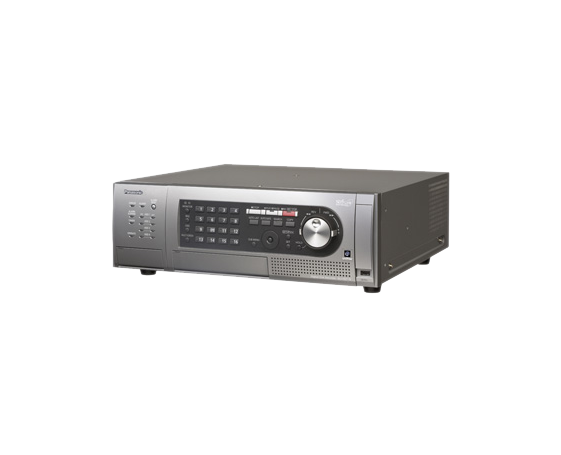

| Audio/Video IF | Video Inputs | WJ-HD716 | 16x 1.0 V [p-p] / 75 Ω composite video inputs (BNC) 16x multiplexed control data (1 ~ 16 CH) Cascade IN: 2x HDMI, 1x BNC |
| WJ-HD616 | 16x 1.0 V [p-p] / 75 Ω composite video inputs (BNC) 8x multiplexed control data (1 ~ 8 CH) Cascade IN: 2x HDMI, 1x BNC |
||
| Video Outputs | 16x 1.0 V [p-p] / 75 Ω composite video signal (BNC), active loop through outputs | ||
| Monitor outputs | 2x HDMI, 2x 1.0 V [p-p] / 75 Ω composite video signal (BNC), | ||
| Video output (front RCA) | 1x 1.0 V [p-p] / 75 Ω composite video signal | ||
| Audio Inputs | 4x –10 dBv, 10 KΩ (RCA) (1 ~ 4 CH) | ||
| Audio Inputs | Rear: 1x –10 dBv, 600 Ω Front: 1x –10 dBv, 600 Ω |
||
| Audio/Video Format | Recording | H.264 (High profile) Frame (720 x 576 pixels) Field (720 x 288 pixels) |
|
| Network | H.264 (High profile) QVGA (320 x 240 pixels): Recording independent Field/Frame: Recording dependent |
||
| Recording | Frame Rate Total | WJ-HD716 | 400 ips at Field, 200 ips at Frame |
| WJ-HD616 | 200 ips at Field, 100 ips at Frame | ||
| Main Unit Functions | Camera Control | Pan/Tilt, Zoom, Focus, Iris, Preset position call (up to 256), Auto mode | |
| Multiscreen Mode | 4 / 7 / 9 / 12 / 16 split screen display | ||
| Copy to External Media | DVD±R, SD (SDHC) | ||
| Browser GUI | Supported Browser | Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business 32 bit), Microsoft® Internet Explorer® 6.0 SP2 (Microsoft® Windows® XP Home/Professional SP2) |
|
| Alarm / Event | Alarm Source | 16x Terminal inputs, 16x Camera alarm, PS-Data | |
| Network | Network Interface | 10Base-T / 100Base-TX (RJ-45) x1 | |
| Maintenance Interface | 10Base-T / 100Base-TX (RJ-45) x1 | ||
| No. of Client at a Time | 8 | ||
| User Registration | Up to 32 users | ||
| External IF | Alarm | 16x Alarm inputs (25 pin D-sub, Make contact, N.O./N.C.) 16x Alarm outputs (25 pin D-sub, Open collector, N.O./N.C) 1x Alarm reset input, 1x Alarm suspend input |
|
| EXT Storage | 3x High speed serial interface. Only for WJ-HDE400 Extension Unit. | ||
| Recording | Emergency recording input, External recording mode input | ||
| Time Adjustment | Time adjustment input/output | ||
| Controls | Sequence switching signal input. Power outage detection output, Shut down ready output |
||
| PS-Data (RS-485) Controller | 2x RS-485 (RJ-11) PS-Data compatible for control from WV-CU650 or Matrix Switcher WJ-SX650 |
||
| RS-485 Camera Interface | 2x RS-485 (RJ-11), 2/4wire, half duplex, for 1 ~ 16 CH | ||
| Mouse | USB Mouse port (Front) x1 | ||
| SD Slot | SD/SDHC Memory Card Slot (Front) x1 | ||
| HDD | Internal HDD | Up to 4x HDDs | |
| Maximum HDD | 31 HDDs (with 3x WJ-HDE400 extension units, 9x HDDs installed in each unit) |
||
| RAID | RAID5/RAID6 supported (with WJ-HDB601) | ||
| General | Power Source | 220 ~ 240 V AC, 50 Hz | |
| Power Consumption | WJ-RT416, WJ-RT416K: 110 W WJ-RT416V, WJ-RT416VK: 120 W | ||
| Ambient Operating Temperature | +5 °C ~ +45 °C (41 °F ~ 113 °F) | ||
| Ambient Operating Humidity | Less than 85 % (without condensation) | ||
| Dimensions | 43.0 cm (W) x 13.2 cm (H) x 40.0 cm (D) (excluding rubber feet and projections) |
||
| Notes | * Weights and dimensions are approximate. * Specifications are subject to change without notice. |
||
